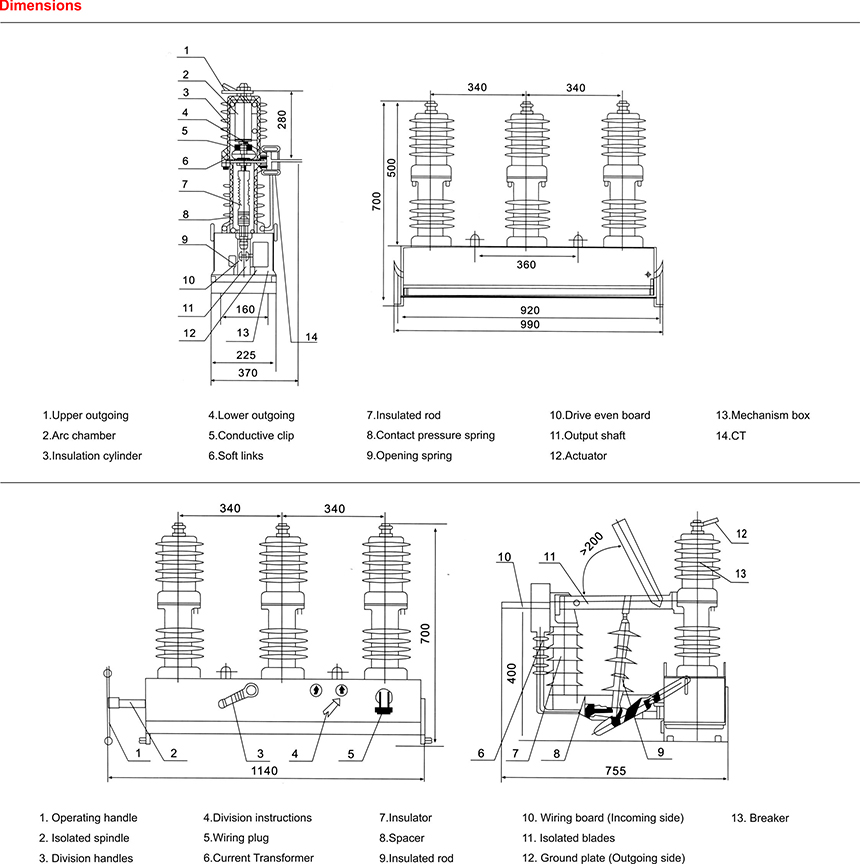

- Product size
Application
ZW32-12 Series permanent magnet type outdoor high voltage vacuum circuit breaker (hereinafter call breaker) is used in the three phase power system of AC 50Hz, voltage 12KV, to switch on/off loading current, overloading current and short circuit currents. It suits for protecting and control distribution system of substation, industrial enterprises, and frequent switching in rural network.
This product has small size, light weight, dew proof, and free of maintenance, it can operate under some severe ambient conditions and on polluted site

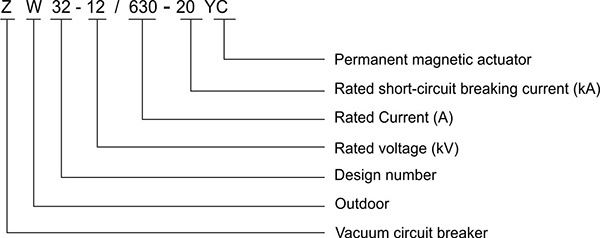

Type and meaning
Performance advantages
This breaker adopted permanent magnet operating mechanism, which can provide holding force by permanent magnet, the breaker can be remained in OFF position, components and parts used in the breaker are few, mechanical driving is simple and short, which can improve the reliability and mechanical endurance very much.

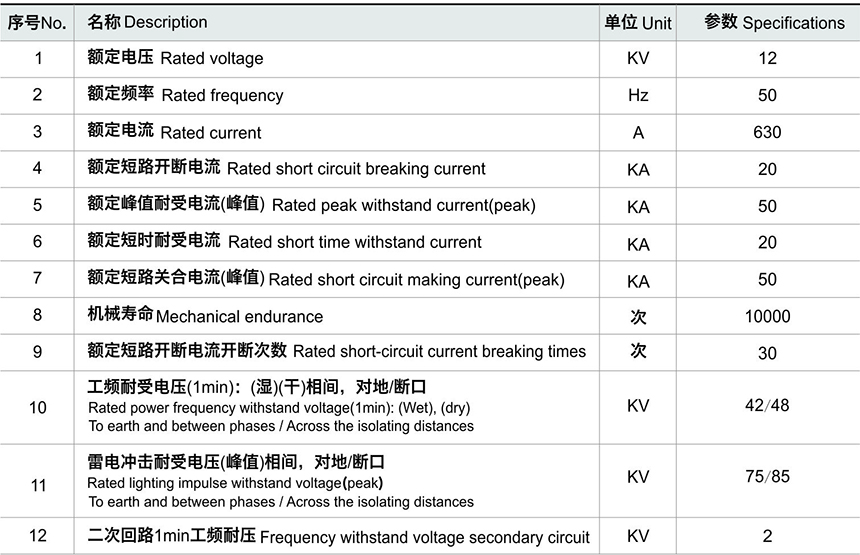

Technical specifications
