Print current pageProduct Description
- brief introduction
- technical parameter
- Product size
Application
DZ47-63DC series DC mini circuit breaker is operating in the line of AC 50/60HZ rated voltage 230/400V, rated current up to 63A, or DC 220V, rated DCcurrentup to 63A, to protect from overloading and short circuit, also used to shift the line non-frequently.Thebreakerissuitableforoperatinginindustry,commercial,highbuilding and civil house, complies with GB 10963.2、IEC 60898-2 standards, the product awards CCC certification.
Normal operating conditions
Ambient air temperature: -5°C~+40°C, the mean value is no greater than +35°C within 24 hours .
Altitude: not higher than 2000m for the installation site.

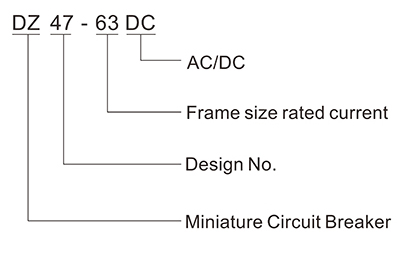

Model
Main Technical Data
Main Specifications:
Rated current：1A、2A、3A、4A、6A、10A、16A、20A、25A、32A、40A、50A、63A；
Instantaneous release
Poles: a. single Poles Circuit Breeaker; b. With a two-pole circuit breaker protection?
Main technical data
Rated short-circuit capacity:

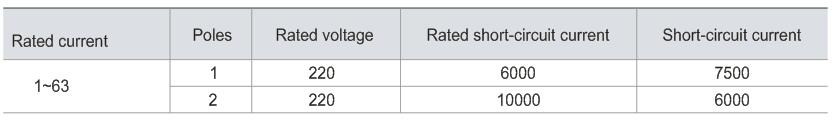

DC parameters

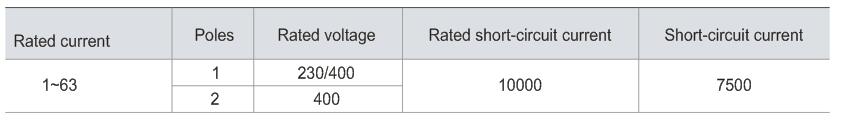

AC parameters

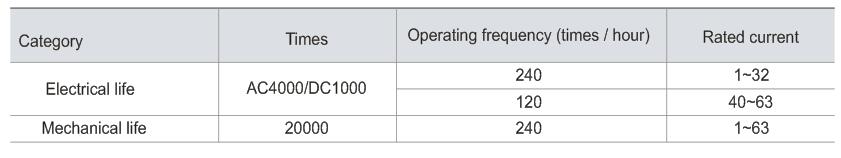

Mechanical and electrical life?

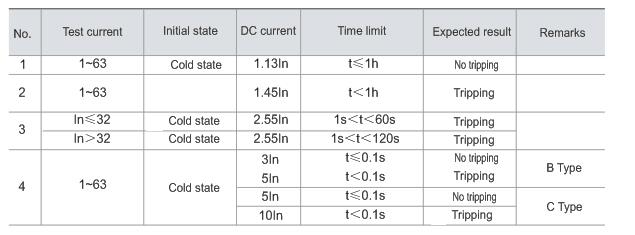

Over current protection characteristics (DC)
Over current protection characteristics (AC)

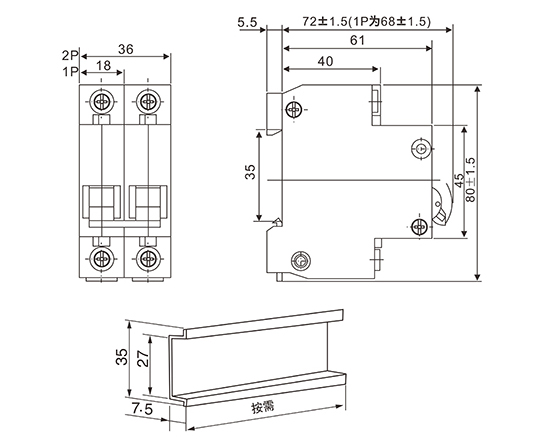

External And Installation Size
