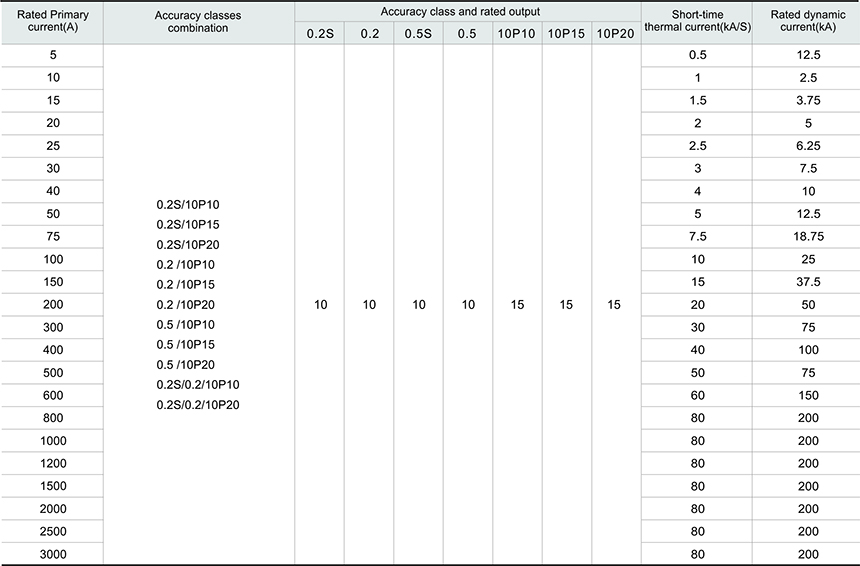

Technical parameters ?

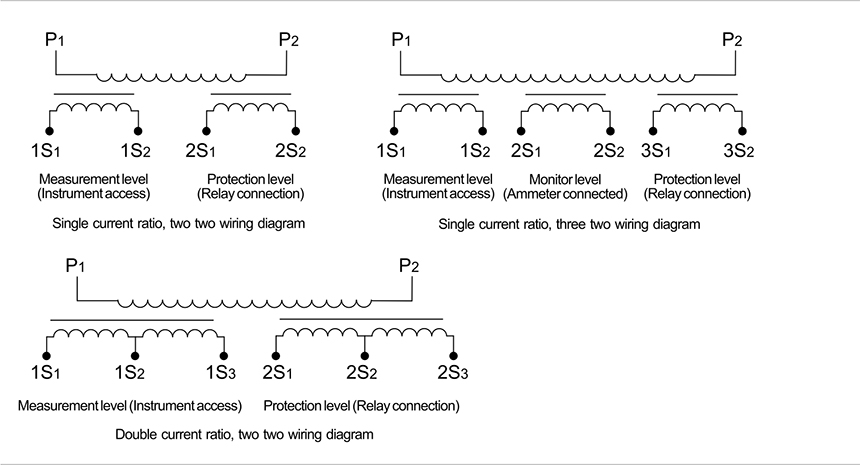

Wiring Diagram

Note: dual current ratio products, 1S1-1S2, 2S1-2S2 for small current ratio; 1S1-1S3, 2S1-2S3 for high current ratio

For example, the current ratio is 50-100/5 A; P1-P2/1S1-1S2, 2S1-2S2 is 50/5, A

Connect P1-P2/1S1-1S3, 2S1-2S3 to 100/5 A

Special reminder: dual current ratio products,

When using a small current ratio, two times 1S1-1S2, 2S1-2S2, the 1S3, 2S3, empty, no wiring;

The use of high current ratio, two times 1S1-1S3, 2S1-2S3, the 1S2, 2S2 null, no wiring;

Single current than multiquadirc products, the two winding did not use shall not open, must be short circuited.

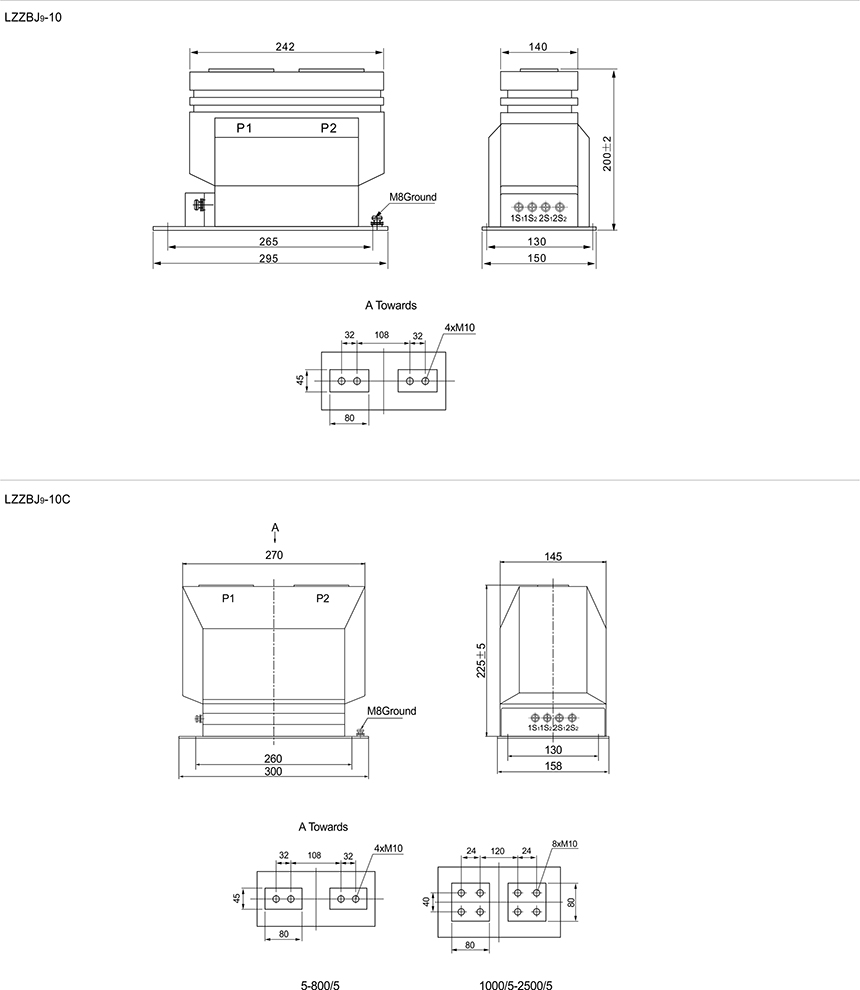

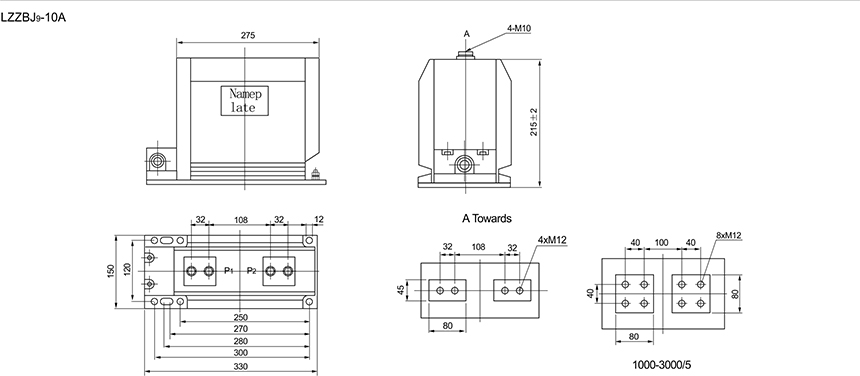

Outline dimensions
